Breathable Cap Float No.533HFB,AIR VENT FLOAT DISC (FLOATERS) No.533HFB,FLAOTING DISC FOR AIR PIPE HEAD No.533HFB

Floater, complete with fittings, for Water ballast tank air vent head, model 533 HFB-300, material Stainless steel 1Cr18Ni9Ti, Vent head size DN 300.
Maker FEIHANG SHIP
ACCESSORIES FACTORY

Product Description For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

The 533HFB Marine Breathable Cap Floater and Ballast Tank Breathable Cap Floater are versatile equipment with several applications. Here are the two main scenarios where they can be useful:

When a ship is sailing, and it encounters adverse weather conditions, seawater or rainwater may enter the air cap, and it cannot be discharged in time. To prevent this, the ship's deck has a ventilation cap/air pipe head that lifts the internal ventilation cap float/ventilation cap float and prevents water from entering the air pipe. This mechanism is known as the self-closing air pipe head and self-closing ballast compartment breathable cap, which effectively isolates the possibility of water entering the cabin.

In the second scenario, the air pipe head/oil and water tank vent cap is immersed in water and at a tilt of 40°. At this position, the vent cap float/vent cap float will float instantly and come in contact with the sealing rubber ring seat of the vent cap. This technique effectively prevents water from flowing into the air/overflow pipe, delaying the time for the tank to enter. Afterward, when the ship returns to its normal state, the air pipe head float inside the air pipe head will descend automatically, allowing the air pipe head on the deck of the ship to resume its ventilation/suction function.

Features For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

• Product Name:Breathable Cap Float,AIR VENT FLOAT DISC (FLOATERS),FLAOTING DISC
• DESIGN STANDARDS: CB
• Material: Stainless Steel 316L
• Can be matched:RUBBER GASKET,GUID BOLT
• Process: Laser Welding
• Description: FLOATER PLATE FOR BALLAST VENT HEAD
• Description: BREATHABLE CAP FLOATING DISC
• Description: FLOATER PLATE FOR BALLAST VENT HEAD

Technical Parameters For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

Process For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

Feihang's production process has been recognized by customers:

It won't be welded out between guide tube and float body;It should be full wdlded keep wdld seam smooth and flawless;Conduct a tightness test with float,and no bubbling when the float dipping in the water 5min.

Applications For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

Application of Breathable Cap Float 533HFB Breathing Head Float:
The ventilated head disc float type is a reliable product that provides excellent performance and safety performance inside various breathable caps. This product aims to prevent or reverse flow of air inside the air pipe head, and improve the safety of the ship. It is very suitable for the shipbuilding industry.
Ventilation cap float, also known as ventilation float disk or floating disk, is an important component of the ventilation head disk float type.
The ventilated head disc float is certified by factory certificates, test reports, and material reports to ensure its quality and reliability for users. This product has export packaging and delivery time is 1-2 days after payment. The minimum order quantity is only 1 piece, and customers can personally discuss the price with the manufacturer.
Feihang has a daily production capacity of 100 pieces, ensuring that customer needs are met in a timely manner..

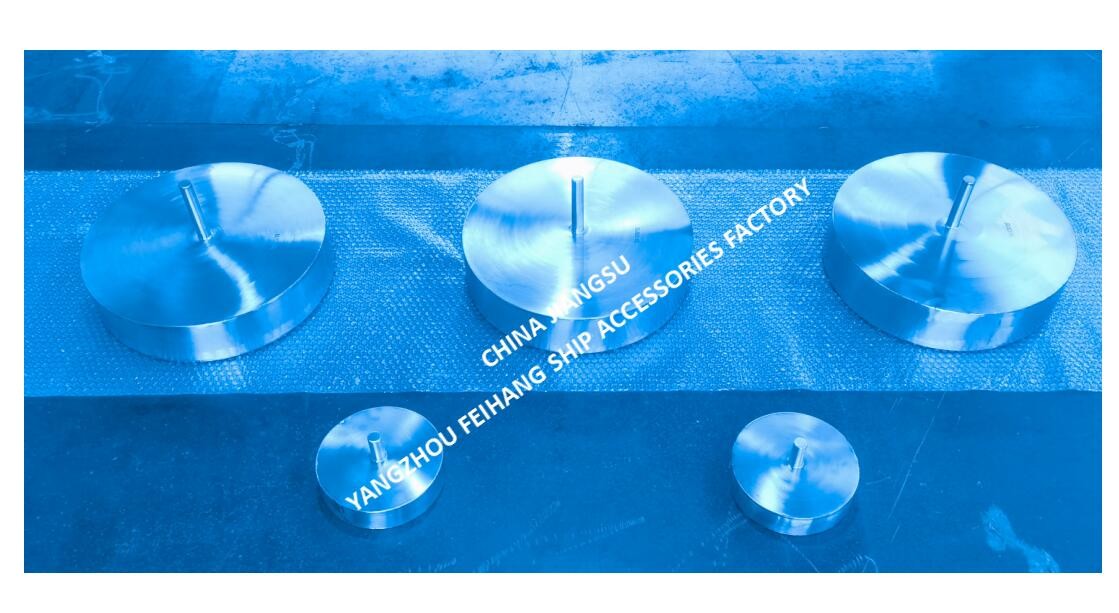

STAINLESS STEEL FLOATING DISC-STAINLESS STEEL FLOATING PLATE

MODEL:533HFB/533HFO/533HF

BREATHABLE CAP FLOAT-BREATHABLE CAP FLOATING PLATE-STAINLESS STEEL BREATHABLE CAP FLOAT-STAINLESS STEEL BREATHABLE CAP FLOATING PLATE

FLOAT DISC FOR BALLAST TANK AIR PIPE HEAD NO.533HFB-50

FLOAT DISC FOR BALLAST TANK AIR PIPE HEAD NO.533HFB-65

NO.533HFB-80-FLOAT DISC FOR FUEL TANK AIR PIPE HEAD

FLOATING PLATE FOR PRECIPITATION CABINET AIR PIPE HEAD NO.533HFB-100

NO.533HFB-125 FLOAT DISC FOR OIL TANK AIR PIPE HEAD

NO.533HFB-150FLOAT DISC FOR AFT CABIN TANK AIR PIPE HEAD

FLOATING PLATE FOR FUEL TANK AIR PIPE HEAD NO.533HFO-200

FLOATING PLATE FOR OIL TANK AIR PIPE HEAD NO.533HFO-250

FLOAT DISC FOR BALLAST TANK AIR PIPE HEAD NO.533HFO-300

FLOAT DISC FOR BALLAST TANK AIR PIPE HEAD NO.533HFB-350

NO.533HFB-300-FLOAT DISC FOR FUEL TANK AIR PIPE HEAD

NO.533HFB-350 FLOAT DISC FOR BALLAST TANK AIR PIPE HEAD

FLOAT DISC FOR BALLAST TANK AIR PIPE HEAD NO.533HFB-400

NO.533HFO-450-FLOAT DISC FOR FUEL TANK AIR PIPE HEAD

How To Order For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

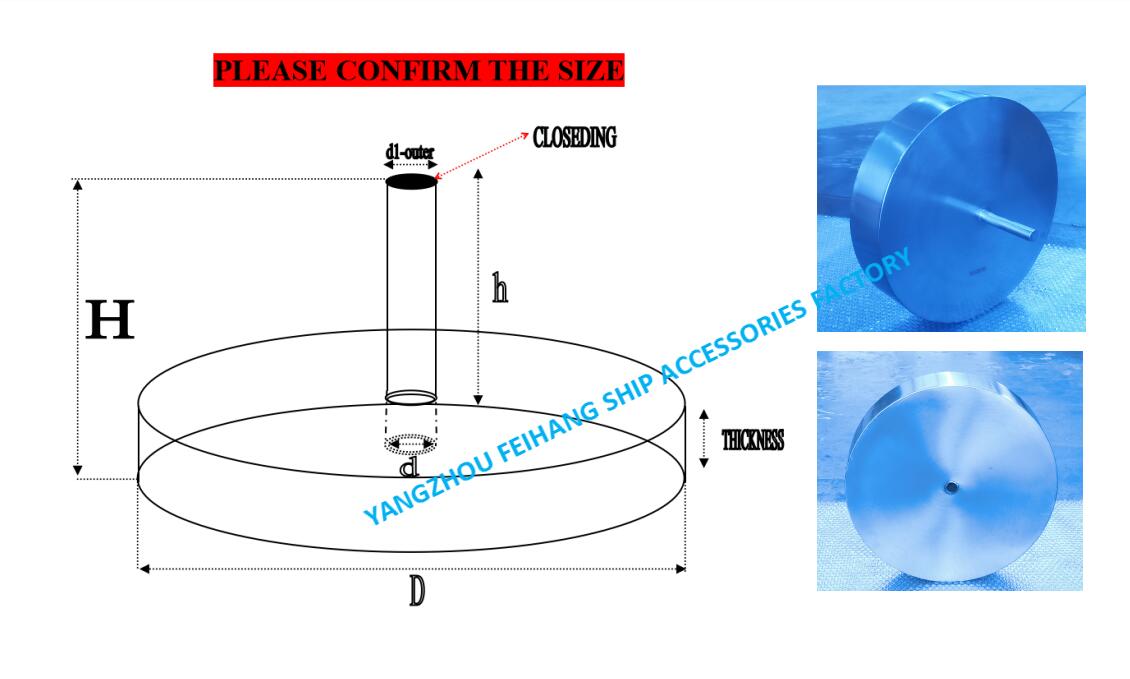

533HFB-Selection Table for Air Pipe Head Component...

Packing and Shipping For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

Product Packaging:

• One Air Vent Head Disc Float Type
• Instruction manual

Shipping Information:

• Shipping weight: 1 pound
• Shipping dimensions: 8 inches x 8 inches x 4 inches
• Shipping carrier: UPS

FAQ For Breathable Cap Floater No.533HFB Air Vent Head Floating Disc:

Here are some frequently asked questions and answers about our Air Vent Head Disc Float Type:

Q: What is the brand name of this product?

A: The brand name of this product is FEI HANG.

Q: What is the model number of this product?

A: The model number of this product is 533HFB-533HFO.

Q: Where is this product made?

A: This product is made in Yangzhou, Jiangsu, China.

Q: What certifications does this product have?

A: This product has a factory certificate, test report, and material report.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 1 piece.

Q: What is the price of this product?

A: The price of this product is discussed personally.

Q: How is this product packaged?

A: This product is packaged for export.

Q: What is the delivery time for this product?

A: The delivery time for this product is 1-2 days.

Q: What are the payment terms for this product?

A: The payment terms for this product are 100% prepaid.

Q: What is the supply ability for this product?

A: The supply ability for this product is 100 pieces per day.
