Product Description For Marine Sea Water Strainers & Marine Sea
Water Filters:
MGPS Marine Biological Protection Device Submarine Gate Seawater
Filter AS600 CB/T497-2012
The MGPS Marine Biological Protection Device Submarine Gate
Seawater Filter AS600 is designed to protect our ship from the
corrosive effects of seawater. It is specifically designed to meet
the requirements of the ship owner and conforms to the ship
standard CB/T497-2012. This filter serves as a powerful suction
coarse water filter, effectively preventing the entry of marine
organisms into the bilge system. It reduces the corrosion rate of
seawater on the hull of the ship, ensuring its durability and
longevity.
Features For Marine Sea Water Strainers & Marine Sea Water Filters:
Design Requirements for Seawater Filters
The design requirements for seawater filters for marine submarines
are outlined below.
Filter Model
The chosen filter model is the AS type, known for its
straight-through design. It has a nominal diameter of DN600, making
it suitable for use in marine environments.
Design Pressure
The working pressure for the seawater filter is 0.6Mpa, with a
design pressure of 1.0Mpa. This ensures the filter can withstand
the pressure of seawater without leaking or breaking.
Body Material
The body of the filter is made of carbon steel and is hot-dip
galvanized to protect against corrosion in saltwater. The interior
of the body is lined with a rubber coating to further prevent
corrosion and ensure the longevity of the filter.
Filter Cartridge
The filter cartridge material is SUS316L stainless steel, known for
its durability and resistance to corrosion in marine environments.
It has a filtering diameter of 5mm, making it suitable for removing
larger particles from seawater.
Inlet and Outlet Connections
The inlet and outlet connections for the coarse water filter are
PN10 flanges, which are commonly used in marine applications. The
filter also requires two welding seats to be installed on the cover
plate for the installation of anti-marine biological electrodes.
Technical Parameters For Marine Sea Water Strainers & Marine Sea
Water Filters:
Marine Sea Water Strainer Technical Parameters
| Design Standards | CB/T497-2012 |
|---|
| SURFACE TREATMENT | Hot-dip Galvanizing And Paint |
|---|
| Filter Element | Stainless Steel Mesh |
|---|
| WORKING PRESSURE | 0.6Mpa |
|---|
| Connection Type | Flanged |
|---|
| Filter Mesh | 5mm |
|---|
| NOMINAL DIAMETER | 24"-DN600mm |
|---|
| Body Material | Carbon Steel Hot-dip Galvanizing |
|---|
| Application | Marine Sea Water,Coarse Water Filter |
|---|
| Median Function | Sea Water |
|---|
| Key Features | Suction Coarse Water Filter, Marine Suction Coarse Water Filter |
|---|
This marine main seawater filter:

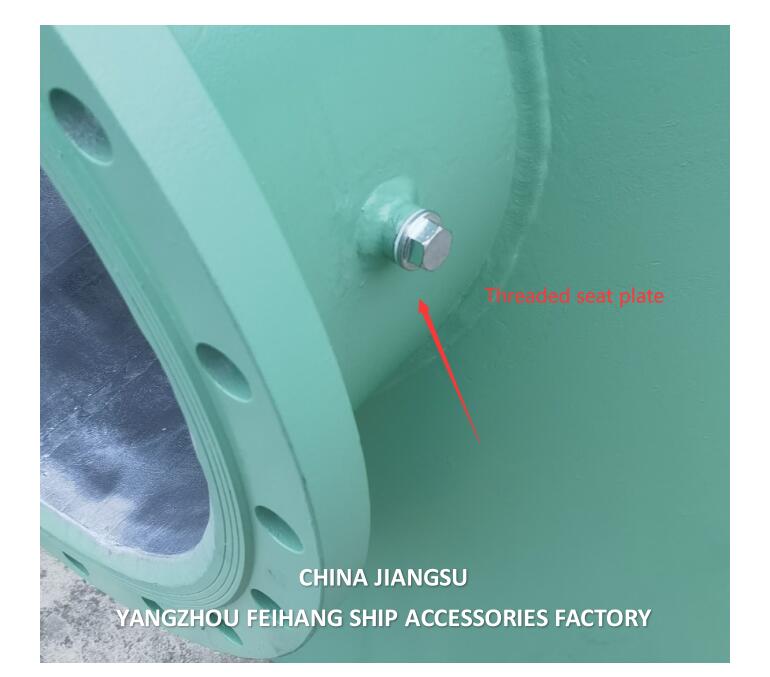

The cover plate is equipped with a welded seat plate for connecting
the MGPS marine organism prevention device
Marine stop check valves used at the cover plate serve as exhaust
valves
Equipped with a drainage outlet at the bottom
The inlet and outlet connections are equipped with threaded
welding, which can connect devices such as pressure gauges
Applications For Marine Sea Water Strainers & Marine Sea Water
Filters:
MGPS Marine Biological Protection Device Seawater Filter AS600
CB/T497-2012
This is a MGPS marine carbon steel galvanized main seawater filter,
designed specifically for desulfurization systems and compliant
with AS600 CB/T497-2012 standards. It effectively removes marine
organisms and prevents them from entering the system.
Featuring a special subsea gate designed for desulfurization
towers, this filter is equipped with an imported MGPS anti marine
organism device, making it a highly reliable option for marine
protection. It meets AS600 CB/T497-2012 standards.
For desulfurization systems with specific subsea gate outlets, the
MGPS anti marine organism device seawater filter AS600 CB/T497-2012
is the recommended choice. It effectively filters out marine
organisms and ensures clean seawater enters the system.
With a high level subsea gate, this MGPS filter is designed for use
in desulfurization towers and features a marine organism prevention
device. It is built to AS600 CB/T497-2012 standards and guarantees
optimal protection for the system.
For desulfurization systems with a low level subsea gate, this
seawater filter is equipped with an MGPS anti marine organism
device and meets AS600 CB/T497-2012 standards. It effectively
filters out marine organisms and keeps the system safe and clean.
Dedicated to desulfurization tower hosts, this seawater pump
features an imported MGPS anti marine organism device and is
designed to meet AS600 CB/T497-2012 standards. It is a reliable
choice for marine protection in desulfurization systems.
Customization For Marine Sea Water Strainers & Marine Sea Water
Filters:
FEIHANG Marine Sea Water Strainer - Customized Service
- Brand Name: FEIHANG
- Model Number: AS-TYPE Straight through type
- Place of Origin: Yangzhou, Jiangsu, China
- Certification: Factory certificate, test report, material report
- Minimum Order Quantity: 1pcs
- Price: Discuss personally
- Packaging Details: Export packaging
- Delivery Time: 5-7days
- Payment Terms: 100% prepaid
- Supply Ability: 100pcs/days
- Filter Element: Stainless Steel Mesh
- Median Function: Sea Water
- Body Material: Carbon Steel Hot-dip Galvanizing
- SURFACE TREATMENT: Hot-dip Galvanizing And Paint
- Connection Type: Flanged
Packing and Shipping For Marine Sea Water Strainers & Marine Sea
Water Filters:
Marine Sea Water Strainer
Packaging and Shipping
Our Marine Sea Water Strainer is carefully packaged to ensure safe
delivery to our customers. Each unit is placed in a sturdy
cardboard box with ample padding to protect it during transit. The
box is then sealed with packaging tape to prevent any damage or
tampering during shipping.
We offer both domestic and international shipping options for our
Marine Sea Water Strainer. For domestic orders, we use trusted
carriers such as UPS, FedEx, and USPS. Shipping times may vary
depending on the customer's location, but we strive to process and
ship orders within 1-2 business days.
For international orders, we work with our shipping partners to
ensure timely and safe delivery. Customers can choose from a
variety of shipping options, such as air freight or sea freight,
depending on their needs and budget.
Upon shipment, customers will receive a tracking number via email
or phone, depending on their preferred method of communication.
This allows them to track their order and know exactly when to
expect delivery.
At Marine Sea Water Strainer, we take great care in packaging and
shipping our products to ensure their safe arrival to our
customers. We are committed to providing the best quality products
and services, and we strive to exceed our customers' expectations
with every order.
FAQ For Marine Sea Water Strainers & Marine Sea Water Filters:
- Q: What is the brand name of this product?
A: The brand name of this product is FEIHANG. - Q: What is the model number of this product?
A: The model number of this product is AS-TYPE Straight through
type. - Q: Where is this product manufactured?
A: This product is manufactured in Yangzhou, Jiangsu, China. - Q: What certifications does this product have?
A: This product has Factory certificate, test report, and material
report. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 piece. - Q: How much does this product cost?
A: The price for this product can be discussed personally. - Q: How is this product packaged for export?
A: This product is packaged for export according to international
standards. - Q: How long is the delivery time for this product?
A: The delivery time for this product is 5-7 days. - Q: What are the payment terms for this product?
A: The payment terms for this product is 100% prepaid. - Q: What is the supply ability for this product?
A: The supply ability for this product is 100 pieces per day.
